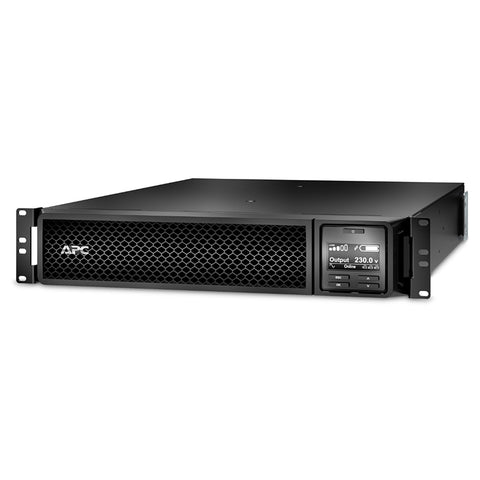

APC Smart-UPS 1500VA/1500W Online UPS Lead Acid Battery with Rail Kit (SRT1500RMXLI)
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 1500VA/1500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The SRT is a 2U rack/tower convertible UPS that is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with IEC 60320 C14 input, 6x IEC 320 C13 and 6x IEC 320 C13 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 432mm (depth) x 85mm (height) x 505mm (width) and weighs 21.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
SPECIFICATIONS:
Main Input Voltage |
230 V |
Other Input Voltage |
220 V 240 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V 240 V |
Rated power in W |
1500 W |
Rated power in VA |
1500 VA |
Input Connection Type |
IEC 60320 C14 |
Output connection type |
6 IEC 60320 C13 |
Number of rack unit |
2U |
Cable length |
1.83 m |
Number of cables |
1 |
Provided equipment |
CD with software Communication cable Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails USB cable Warranty card |
Battery type |
Lead-acid battery |
Number of battery filled slots |
1 |
Number of battery free slots |
0 |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery charger power |
108 W rated |
Battery life |
3 ¦5 year(s) |
Replacement battery |
APCRBC155 |
Extended runtime |
1 |
UPS type |
Double conversion online |
Product web sub-family |
High density |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Redundant |
No |
Colour |
Black |
Height |
8.5 cm |
Width |
43.2 cm |
Depth |
50.5 cm |
Net weight |
21 kg |
Mounting preference |
No preference |
Mounting mode |
Rack-mounted |
Two post mountable |
0 |
USB compatible |
Yes |
Mounting position |
Horizontal |
Network frequency |
40...70 Hz auto-sensing |
Input voltage limits |
100...275 V 40% load 176...275 V full load |
Maximum configurable power in VA |
1500 VA |
Maximum configurable power in W |
1500 W |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Wave type |
Sine wave |
Harmonic distortion |
Less than 2 % |
Crest factor |
3 : 1 |
Bypass type |
Built-in bypass |
Product certifications |
CE EAC |
Standards |
EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation |
0 ¦40 °C |
Relative humidity |
0 ¦95 % non-condensing |
Operating altitude |
0...10000 ft |
Ambient air temperature for storage |
-20 ¦50 °C |
Storage Relative Humidity |
0 ¦95 % non-condensing |
Storage altitude |
0.00 ¦15240.00 m |
Acoustic level |
50 dBA |
Heat dissipation |
317 Btu/h |
IP degree of protection |
IP20 |
Free slots |
1 |
Alarm |
Audible and visible alarms : prioritized by severity |
Emergency power off |
Yes |
Surge energy rate |
432 J |
