SPECIFICATIONS:
GENERAL DATA |
|
Model |

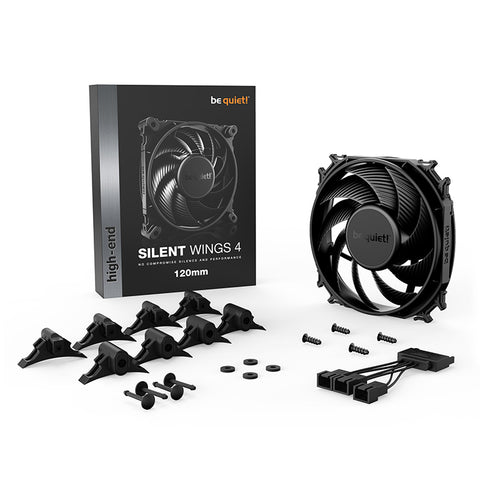

Silent Wings 4 120mm |
Dimensions (mm) |
120 |
Color option |
Black |
Fan speed at 100% PWM / 12V (rpm) |
1600 |
Noise level at 100% PWM / 12V (dB(A)) |
18.9 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
48.7 / 82.7 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.79 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
120 x 120 x 25 |
Weight incl. fixed cables (g) |
190 |
Bearing technology |
FDB |
Motor technology |
6-pole fan motor |
Push pin fixing |
|
Screw fixing |
|
CABLES / CONNECTORS |
|
Connector |
3-pin |
Cable length (mm) |
500 |
Cable sleeve |
|
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
48.7 / 82.7 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.79 |
Noise level at 100% PWM / 12V (dB(A)) |
18.9 |
Lifespan (h / 25 °C) |
300,000 |
Zero RPM mode |
|
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Current consumption (A) |
0.12 |
Input current (A) |
0.12 |
Safety current (A) |
0.12 |
Input power (W) |
1.4 |
ACCESSORIES |
|
12V to 7V adapter |
|
12V to 5V adapter |
|
Screws |
4 |
Push pins |
4 |
hard plastic washer |
4 |
Others |
Rubber & hard plastic mountings |
SAFETY CERTIFICATION |
|
Approvals |
CE / UL / UKCA / TÃV |
