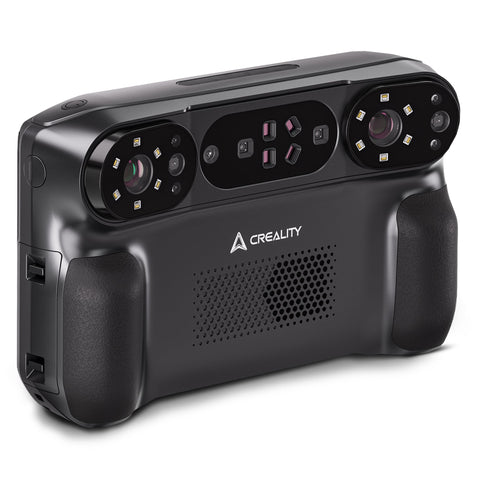

With multiple scanning modes, standalone on-device processing and a portable all-in-one design, the Sermoon P1 streamlines workflows from capture to model generation. It is built for users who need reliable detail reproduction for reverse engineering, prototyping, inspection and 3D printing applications.
Key-Features:
- • Features:
- • Hybrid blue laser + NIR structured light scanning
- • Multi-mode laser system (cross, parallel, single-line)
- • High-precision 3D data capture
- • Scans dark and reflective surfaces
- • Standalone on-device processing capability
- • Portable professional scanning system
- • Industrial inspection and reverse engineering support
- • Compatible with CAD and 3D printing workflows
- • Suitable for small to large object scanning
- • Designed for professional engineering and design use
- • Specifications/Attributes:
- • Size: 20.9 x 12.9 x 5.3cm
- • Scanning Mode
- • Single Blue Laser Line
- • 7 Parallel Blue Laser Lines
- • 22 Cross Blue Laser Lines
- • Close-Range Infrared Structured Light
- • Long-Range Infrared Structured Light
- • Accuracy: Up to 0.02mm 1 | Up to 0.075mm for Close/Long Range Infrared Structured Light
- • Volumetric Accuracy: 0.02mm+0.06mm/m | 0.075mm+0.1mm/m for Close/Long Range Infrared Structured Light
- • Scanning Rate (Standalone Mode):
- • 61,000 pt/s
- • 430,000 pt/s
- • 1,044,000 pt/s
- • 3,440,000 pt/s for Close/Long Range Infrared Structured Light
- • Scanning Rate (PC Connected):
- • 102,000 pt/s
- • 716,000 pt/s
- • 1,740,000 pt/s
- • 6,881,000 pt/s for Close/Long Range Infrared Structured Light
- • 3D Resolution: 0.05-2mm | 0.1-2mm for Close/Long Range Infrared Structured Light
- • Scanning Speed (Standalone): Up to 60FPS | Up to 15FPS for Close/Long Range Infrared Structured Light
- • Scanning Speed (PC Connected): Up to 100FPS | Up to 30FPS for Close/Long Range Infrared Structured Light
- • Min. Scan Volume: 5mm x 5mm x 5mm | 150mm x 150mm x 150mm for Close/Long Range Infrared Structured Light Scanning
- • Single Capture Range:
- • 85mm*105mm @160mm
- • 135mm*130mm @200mm
- • 265mm*200mm @300mm
Package Includes:
- • 1 x Creality Sermoon P1 3D Scanner
