Key-Features:
- • Features:
- • Multi-light system with 1 + 7 + 34 blue laser lines + NIR structured light
- • Up to 0.02mm scanning accuracy
- • Volumetric accuracy of 0.02mm + 0.08mm/m
- • Scanning speed up to 90FPS
- • Four-lens stereo vision system
- • Scan objects from 5mm to 4000mm
- • Single-line laser mode for deep holes and complex surfaces
- • Supports marker-free and spray-free scanning
- • AI-powered scanning software
- • Seamless CAD, CAM and 3D printing workflow compatibility
- • Indoor and outdoor scanning capability
- • Handles dark and complex surfaces effectively
- • Specifications/Attributes:
- • Size: 22.5 x 5.3 x 7.6cm
- • Scanning Mode
- • Single Blue Laser Line
- • 7 Parallel Blue Laser Lines
- • 34 Cross Blue Laser Lines
- • Close-Range Infrared Structured Light
- • Long-Range Infrared Structured Light
- • Accuracy: Up to 0.02mm 1 | Up to 0.075mm for Close/Long Range Infrared Structured Light
- • Volumetric Accuracy: 0.02mm+0.08mm/m | 0.075mm+0.1mm/m for Close/Long Range Infrared Structured Light
- • Scanning Rate:
- • 108,000 measurements/s
- • 756,000 measurements/s
- • 1,428,000 measurements/s
- • 4,600,000 measurements/s for Close/Long Range Infrared Structured Light
- • 3D Resolution: 0.05-2mm | 0.1-2mm for Close/Long Range Infrared Structured Light
- • Scanning Speed: Up to 90FPS | Up to 30FPS for Close/Long Range Infrared Structured Light
- • Min. Scan Volume: 5mm x 5mm x 5mm | 150mm x 150mm x 150mm for Close/Long Range Infrared Structured Light Scanning
- • Single Capture Range:
- • 205mm x 147mm at 200mm
- • 293mm x 217mm at 300mm
- • 355mm x 289mm at 400mm
- • 417mm x 361mm at 500mm
- • 506mm x 433mm at 600mm
Package Includes:

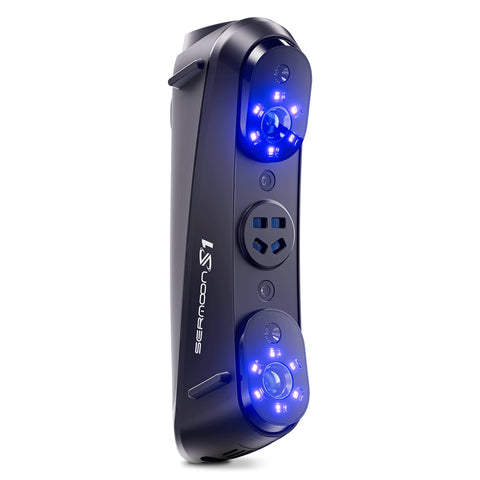

- • 1 Creality Sermoon S1 3D Scanner
