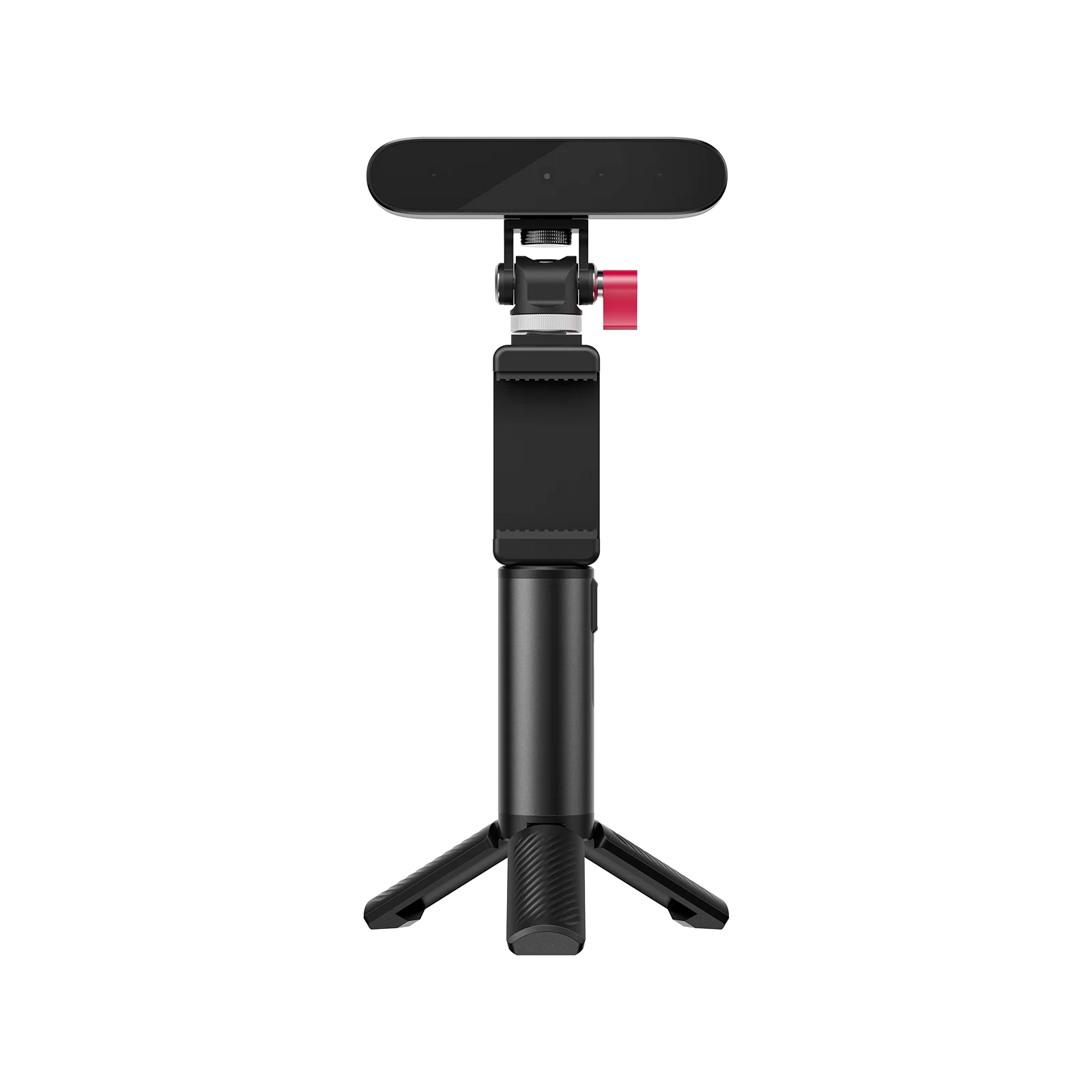

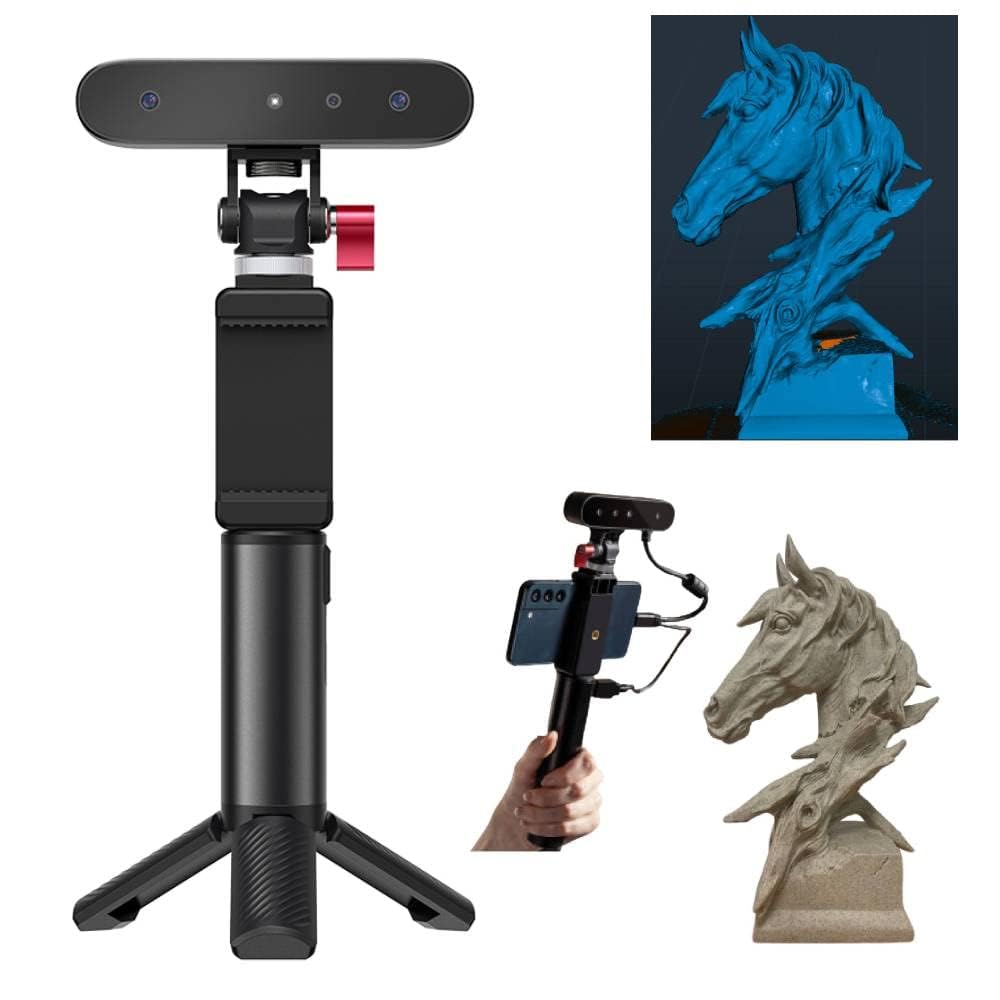

Creality 3D Scanner CR-Scan Ferret 3D Scanner for 3D Printing & Modeling
JB Hi-Fi Marketplace: Sold and sent by
- Portable 3D scanner with 0.1mm accuracy and dual-mode scanning
- Scan in full color even outdoors with up to 30 FPS capture
- Lightweight, USB-powered 3D scanner ideal for medium objects
Description

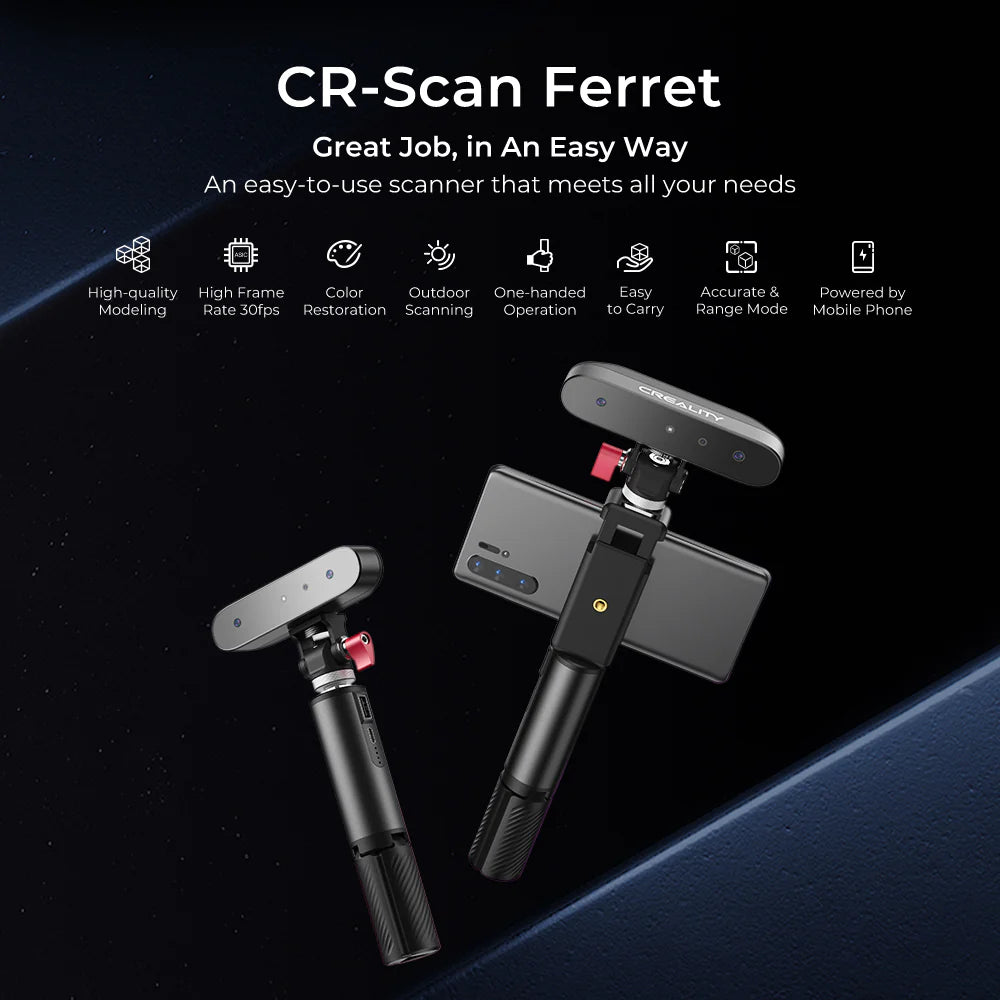

Creality CR-Scan FerretCost-effective scanner
Creality Scan Android APP/ Windows/Software(: bit.ly/3ICD7in
- Affordable
- Compact design
- Dual mode scanning
- ASIC chipset up to 30FPS
- Full color scanning
- Easy operation
- Outdoor scanning
- Low power consumption
We offer:
- One-year service from the date of purchase on all our products.
- Strict quality control and professional technical guidance, guide you through the journey of 3D Printing.
- Exclusive resources like tutorials and improved instruction, check out the description below for more.
Low power consumption
The 3D scanner can provide over 2 hours of continuous scanning using its charging handle. It can be powered with a 5V power bank. Start scanning and enjoy it anytime, anywhere.
| Product Name | CR-Scan Ferret |
| Accuracy | 0.1mm |
| Resolution/Point Distance | 0.16mm |
| Single capture range | 560*820mm@700mm |
| Working Distance | 150~700mm |
| Minimum Scanning | 50*50*50mm |
| Frame Rate/Scan Speed | up to 30 fps |
| Light Source | NIR |
| Outdoor Scanning | Support Scanning in Bright Sunlight |
| Tracking Mode | Visual Tracking |
| Color Texture | Support |
| Output Format | OBJ / STL / PLY |
| Machine Weight | 105g |
| Machine Size | 120*30*26mm |
| Compatible System | Android 11 and above / Win 10(64 bit)/Win 11 (64-bit) / Mac OS（Note: Purchase additional WiFi6 Wireless Bridge accessories to make the scanner compatible with Mac and iOS） |
| Connection Mode | USB 2.0/3.0 |
HOW TO USE
1. Make sure the scanned object is larger than 50*50*50mm. After connecting the device, select the option matching your item.
2. If the displayed distance is "perfect" and the item is tracked, the scan can be started.
3. While scanning, if tracking is lost, backtrack to the previous scanned area and hold for a few seconds to resume tracking. Try to enable ‘Exclude Base’ at the bottom left corner(Windows) or bottom right corner(Android) while scanning.
4. For small objects, it is recommended to use a tool such as a turntable to scan 360° around the object at least 3 times.
Tips: For Android phone users, please check whether the OTG function is turned on while connecting.
If you are a novice, please scan patiently. I believe you will find the skills and succeed.
- Objects recommended for scanning
Ideal for medium and large-sized object scanning. Recommended: Human faces, bodies, Sculpture, Carving, etc.
Not suitable for transparent, reflective, through-holes, very thin objects. Nonstationary object: eg. moving animal.
Oversized objects such as wall, rooms, etc. and ultra small object such as keys, coins scissors, gears, jewelleries or tiny electronic components, etc.
