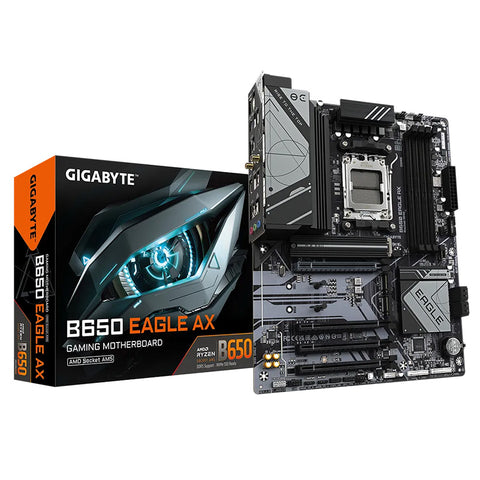

Gigabyte B650 Eagle AX AM5 ATX Motherboard (B650 EAGLE AX)
JB Hi-Fi Marketplace: Sold and sent by
Warning
This product contains a button/coin battery and is hazardous. Keep batteries away from children. See product description below for important safety details.
- Motherboard CPU Socket : AMD Socket AM5
- Motherboard Form Factor : ATX
- Chipset : AMD B650
Description
Warning
This product contains a button/coin battery and is hazardous. Keep batteries away from children. Batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed inside any part of the body.
SPECIFICATIONS:
|
CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|
Chipset |
AMD B650 |
|
Memory |
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
Onboard Graphics |
Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
LAN & Wireless |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module: - Realtek® Wi-Fi 6E RTL8852CE - Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Bluetooth® 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
