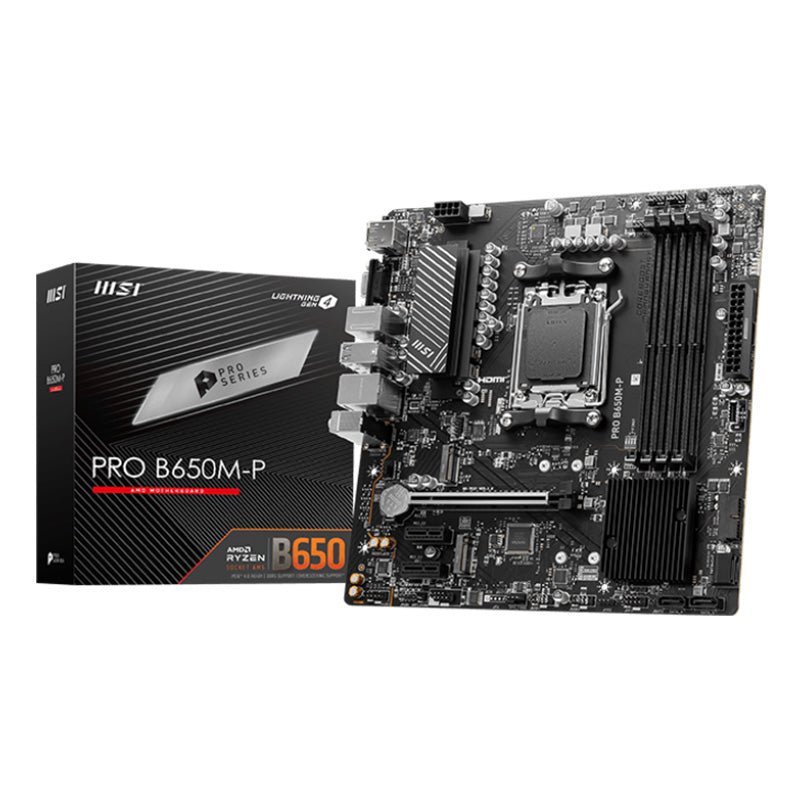

MSI Pro B650M-P AM5 mATX Motherboard (B650M-P)
JB Hi-Fi Marketplace: Sold and sent by
Warning
This product contains a button/coin battery and is hazardous. Keep batteries away from children. See product description below for important safety details.
- Motherboard CPU Socket : AMD Socket AM5
- Motherboard Form Factor : Micro ATX
- Motherboard Chipset : AMD B650
Description
Warning
This product contains a button/coin battery and is hazardous. Keep batteries away from children. Batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed inside any part of the body.
SPECIFICATIONS:
|
Chipset |
AMD B650 |
|
CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
Socket |
AM5 |
|
Memory |
4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
Onboard graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
Slot |
1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
Storage |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
|
LAN |
Realtek® 8125BG 2.5G LAN |
|
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
Internal I/O |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
LED feature |
4x EZ Debug LED |
|
Back panel ports |
DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) |
|
Operating system |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB info |
mATX 243.84mmx243.84mm |
|
Box content |
European Union Regulatory Notice Quick Installation Guide 2 x M.2 Clips SATA Cable I/O Shield |
