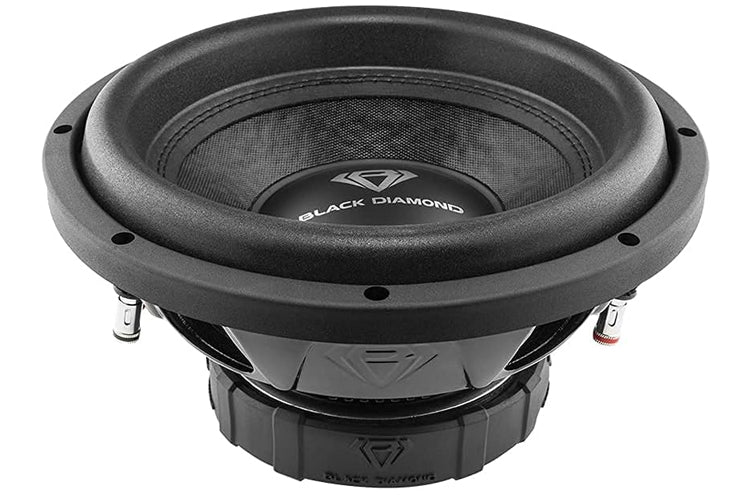

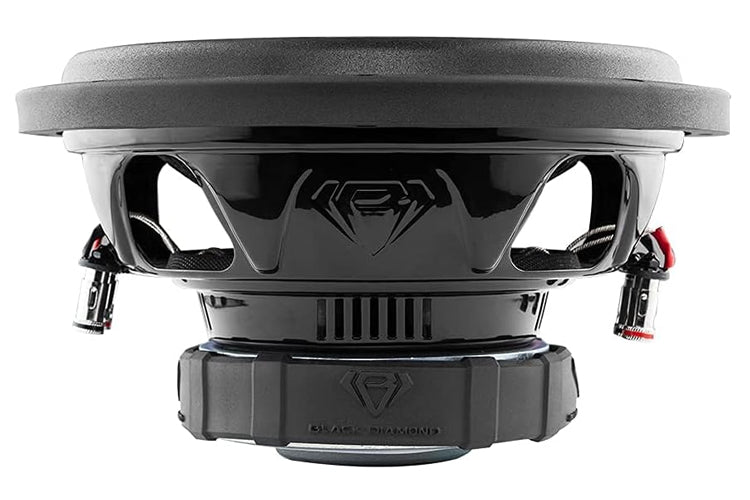

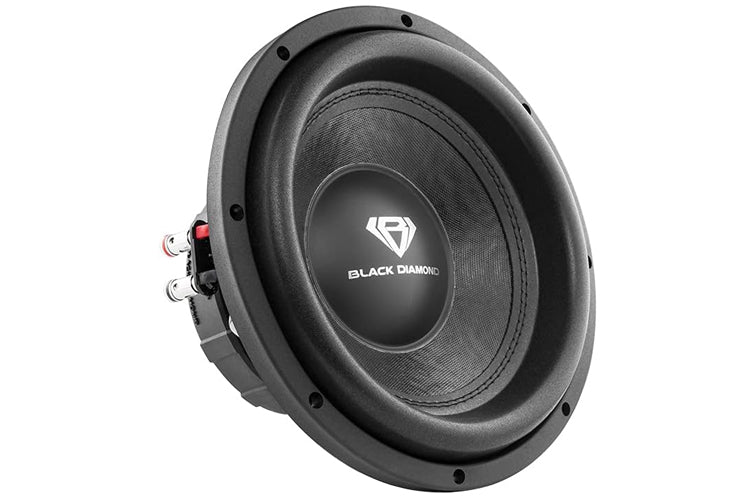

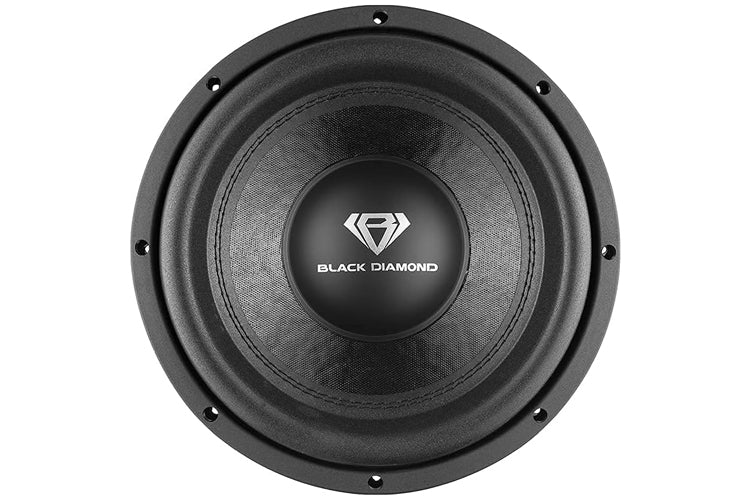

Black Diamond DIA-10D4 10" Car Subwoofer 4-Ohms DVC 440W Max
MODEL: DIA-10D4
SKU: 10008659
JB Hi-Fi Marketplace: Sold and sent by
PLU: 810005188319
$119
Log in to see if you have coupons.
Key features
- 220W RMS and 440W max power handling with 4+4 Ohm impedance.
- Sensitivity of 89.5dB with a frequency response of 40Hz-4.5KHz.
- Foam surround, paper cone, and ferrite magnet.
Getting your item
Online Only
Description
Key Features:
- Nominal Diameter: 10″
- Nominal Impedance: 4+4 Ohms
- RMS Power Handling: 220W
- MAX Power Handling: 440W
- Sensitivity: 89.5dB
- Frequency Response: 40Hz-4.5KHz
- Recommended Lo Pass Crossover: 90Hz
Black Diamond DIA-10D4 MOTOR SPECIFICATIONS:
- Voice Coil Diameter: 2″/50.8mm
- Voice Coil Former Material: Aluminum
- Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Dust Cap: Paper
- Surround Material: Foam
- Basket Material: Steel
- Basket Color – Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 45 oz
- Displacement Volume: 1.27L
Black Diamond DIA-10D4 TS PARAMETERS:
- Equivalent Volume: 39.05L
- Excursion: 13.5mm
- Free Air Resonance: 40Hz
- Mechanical Factor: 5.479
- Electrical Factor: 0.831
- Total Factor: 0.725
- Moving Mass: 125.124g
- Compliance: 0.046mm/N
- Force Factor: 12.045
- Voice Coil Inductance: 0.932mH
- Diaphragm Area: 365.25cm2
- Dc Resistance: 3.6+3.6 ohms
- Efficiency Bandwidth Product: 48.13
Black Diamond DIA-10D4 MEASUREMENTS:
- Overall Diameter: 10.24″/260mm
- Overall Depth: 5.71″/145mm
- Front Mount Baffle Cutout: 9.13″/232mm
- Motor Diameter: 5.90″/150mm
