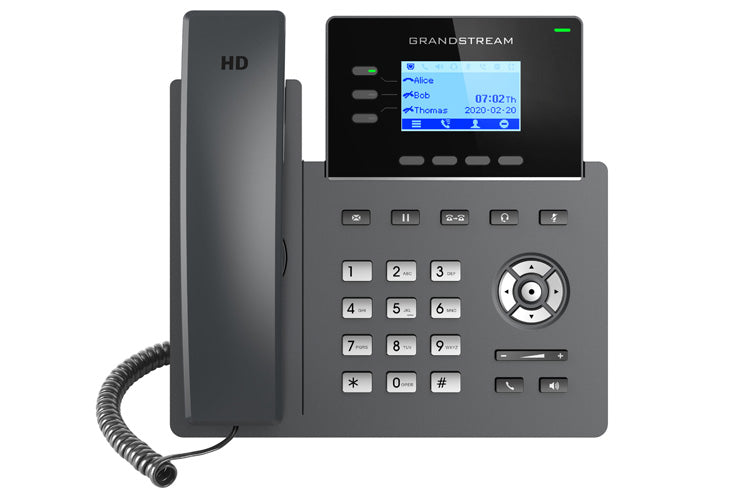

Grandstream GRP2603 3 Line IP Phone

3-Line Essential IP Phone GRP2603

Key Features:

• 3 lines
• 6 SIP accounts
• 3 call appearances
• Centralized interface to configure, provision, manage & monitor Grandstream devices
• Electronic Hook Switch support for Plantronics, Jabra, Sennheiser headsets
• Full-duplex speakerphone with HD audio
• Noise shield technology
• Dual switched autosensing 10/100/1000 Mbps Gigabit Ethernet ports
• 5-way audio conferencing
• Enterprise-level protection
• Secure boot
• Dual firmware images
• Encrypted data storage
• Swappable faceplate

Specifications:

• Protocols/Standards - SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
• Network Interfaces - Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports
• Graphic Display - 132 x 64 (2.7") backlit graphical LCD display
• Feature Keys - 3 line keys with dual-color LED and support for 6 SIP accounts, 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 9 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Auxiliary Port - RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
• Voice Codecs and Capabilities - Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB
• Telephony Features - Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
• HD Audio - Yes, HD handset and speakerphone with support for wideband audio
• Base Stand - Yes, 2 angle positions available (39° & 45°), Wall Mountable (*wall mount sold separately)
• QoS - Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security - User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Multi-language - English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian, and more
• Upgrade/Provisioning - Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency - Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
• Temperature and Humidity Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing
• Package Content - GRP2603 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide
• Physical - Dimension: 214mm (L) x 206mm (W) x 68mm (H) (with handset) Unit weight: 780g; Package weight: 1090g for GRP2603P &1140g for GRP2603 GRP2603/GRP2603P
• Compliance - FCC: Part 15 Class B; FCC Part 68 HAC; CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004; IC: ICES-003; CS-03;
