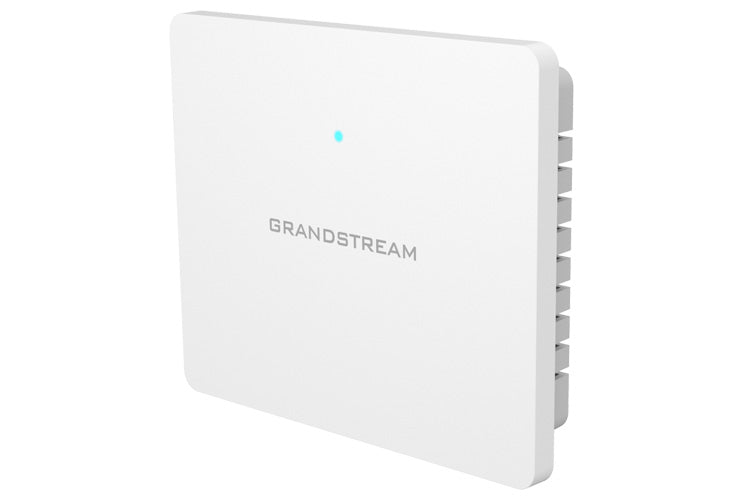

Grandstream GWN7602 Wireless Access Point 2x2 802.11ac Wave2

GWN7602 Wi-Fi AP with Integrated Ethernet Switch

Key Features:

• 1.17Gbps aggregate wireless throughput
• 1x Gigabit & 3x 100Mbit wireline speed
• 100m coverage range
• Self power adaptation
• Anti-hacking secure boot
• Critical data/control lockdown
• Support up to 80 Wi-Fi client devices
• Advanced QoS

Specifications:

Antennas

• 2 dual band internal antennas.
• Antenna 1 - 2.4GHz - gain 3.0dBi, 5GHz: gain 3.5dBi
• Antenna 2 - 2.4GHz - gain 3.5dBi, 5GHz: gain 3.0dBi

WiFi Data Rates

• IEEE 802.11ac - 6.5 Mbps to 1733Mbps
• IEEE 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n - 6.5Mbps to 600Mbps
• IEEE 802.11b - 1, 2, 5.5, 11 Mbps
• IEEE 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

• 2.4 GHz Radio - 2412 – 2484 MHz
• 5 GHz Radio - 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz

Channel Bandwidth

• 2.4G: 20 & 40MHz
• 5G: 20, 40, 80MHz

Maximum TX Power

• 2.4G: 21 dBm
• 5G: 21 dBm

Network Interfaces

• 1x 10/100/1000M uplink Ethernet port with POE/POE+
• 2x 10/100M Ethernet port with PSE
• 1x 10/100M Ethernet port

Network Management

• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

• Support 802.3 az; PoE 802.3af/ 802.3at
• PSE max output per port - 6W; Max Consumption: 20 W

Environmental

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension:135 x 115 x 30mm; Unit Weight: 188g
• Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 278.5g
• GWN7602 802.11ac Wireless AP, Quick Start Guide
• FCC, CE, RCM, IC
