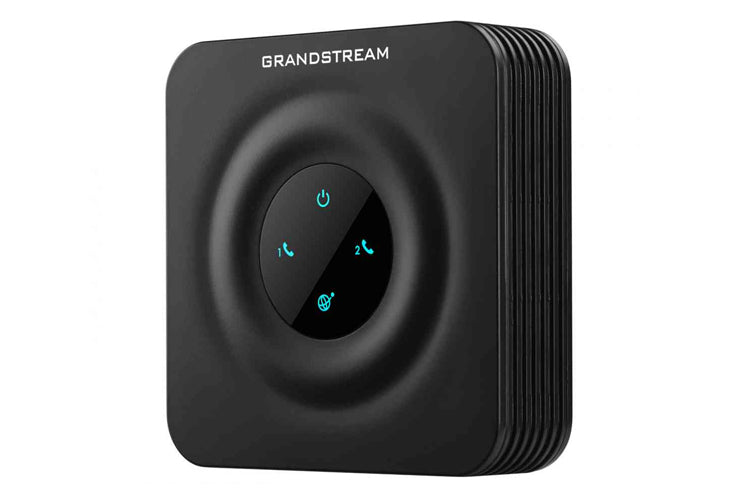

Grandstream HT802 2 Port FXS ATA VoIP Telephone Adapter

2 Port FXS ATA

• 2 SIP profiles through 2 FXS ports
• 10/100Mbps port
• TLS & SRTP security encryption technology
• 3-way voice conferencing
• Failover SIP server
• T.38 Fax for creating Fax-over-IP
• Wide range of caller ID formats
• Multi language prompts
• Flexible dial plan

Specifications:

Interfaces

• Telephone Interfaces - Two (2) RJ11 FXS ports
• Network Interfaces - One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)
• LED Indicators - POWER, INTERNET, PHONE1, PHONE2
• Factory Reset Button - Yes

Voice, Fax, Modem

• Telephony Features - Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
• Fax Over IP - T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul Ring Load - 2 REN: Up to 1km on 24 AWG
• Caller ID - Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods - Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

• QoS - Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, DiffServ, MPLS)
• DTMF Method - In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control - HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog

Security

• Media - SRTP
• Control - TLS/SIPS/HTTPS
• Management - Syslog support, SSH, remote management using web browser

Physical

• Universal Power Supply - Input: 100-240VAC, 50-60Hz Output: 5.0VDC/1.0A
• Dimension and Weight - 100mm x 100mm x 29.5mm, 114g (without package)
• Compliance - FCC 15B, AS/NZS CISPR22, AS/NZS60950, EN55022, EN55024, EN60950, EN61000-3- 2, EN61000-3-3, UL (Power supply) K.21
